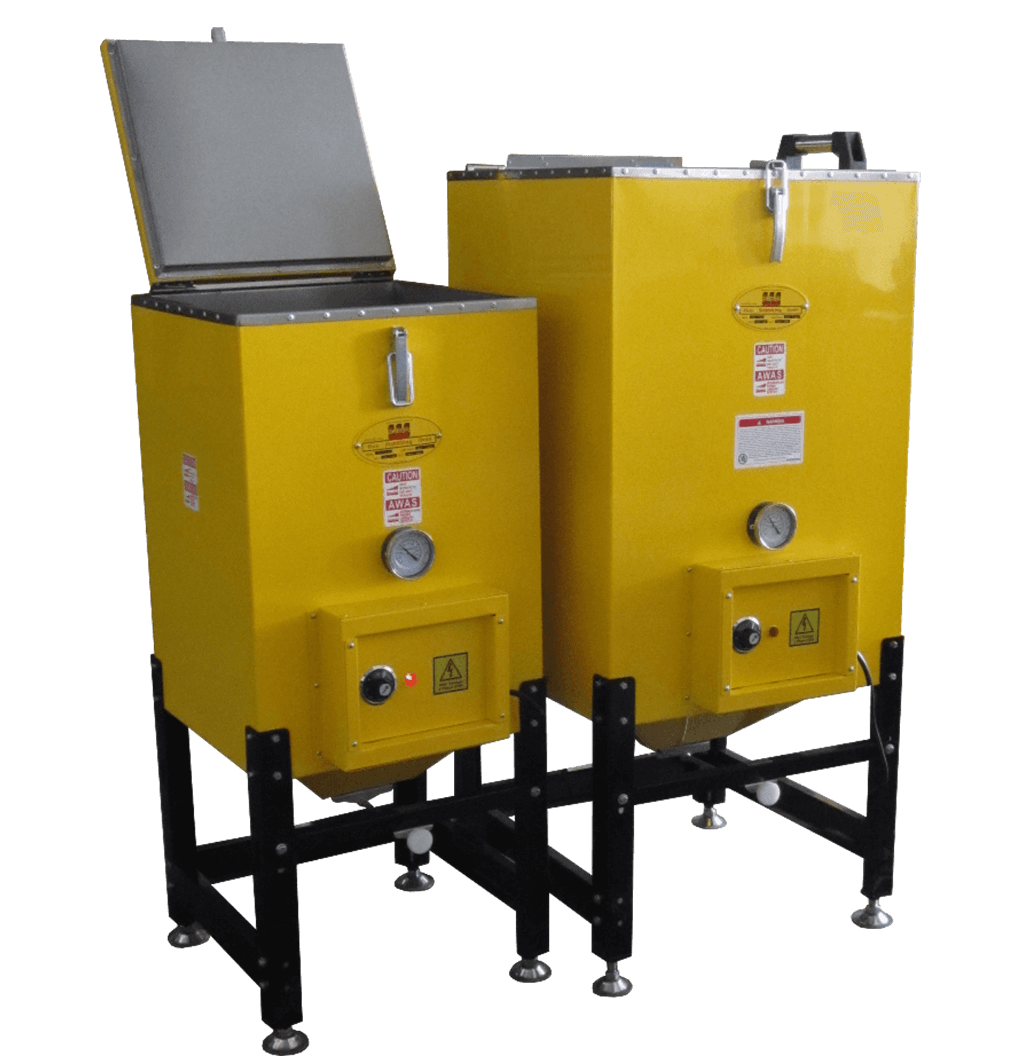

Mild Steel Flux Holding & Rebaking Oven with Analog Control

MODEL:

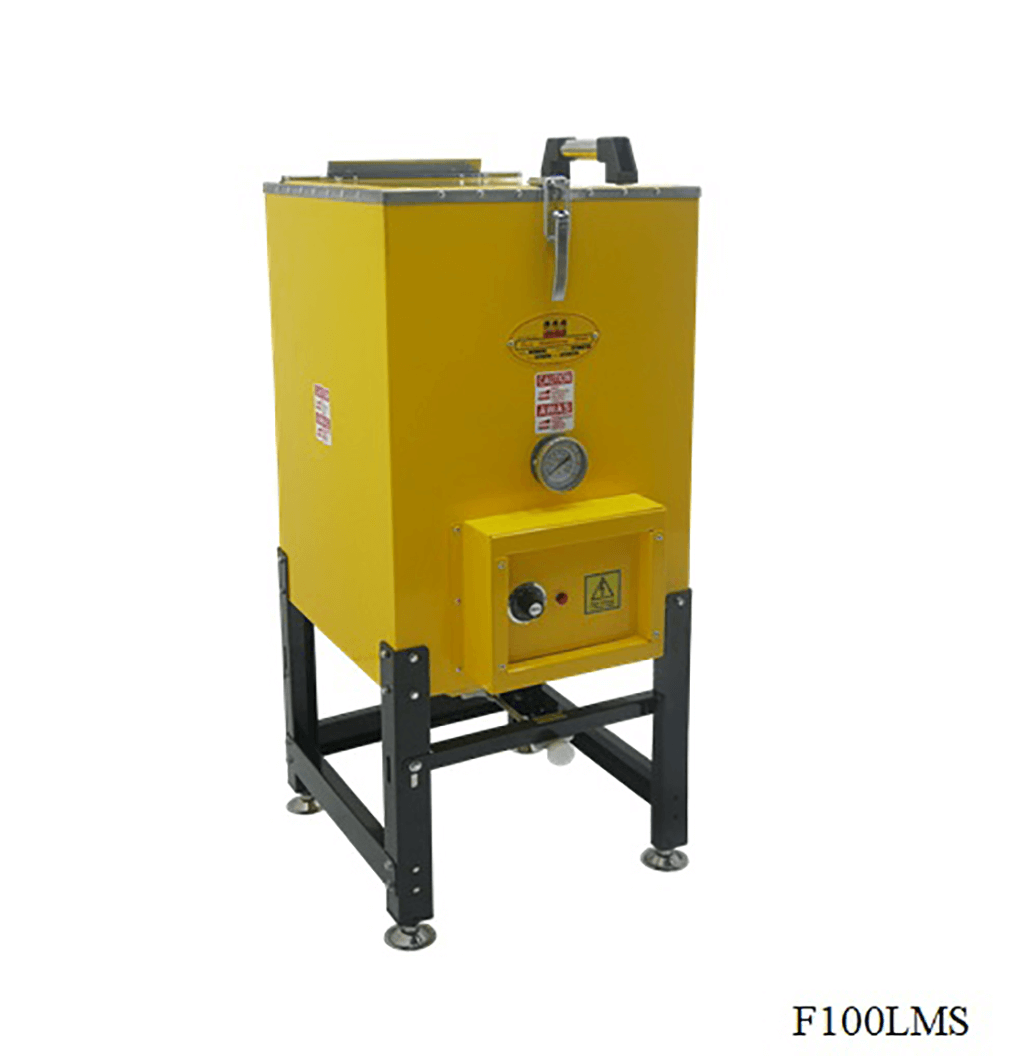

  • F100LMS/75kg
  • F200LMS/150kg

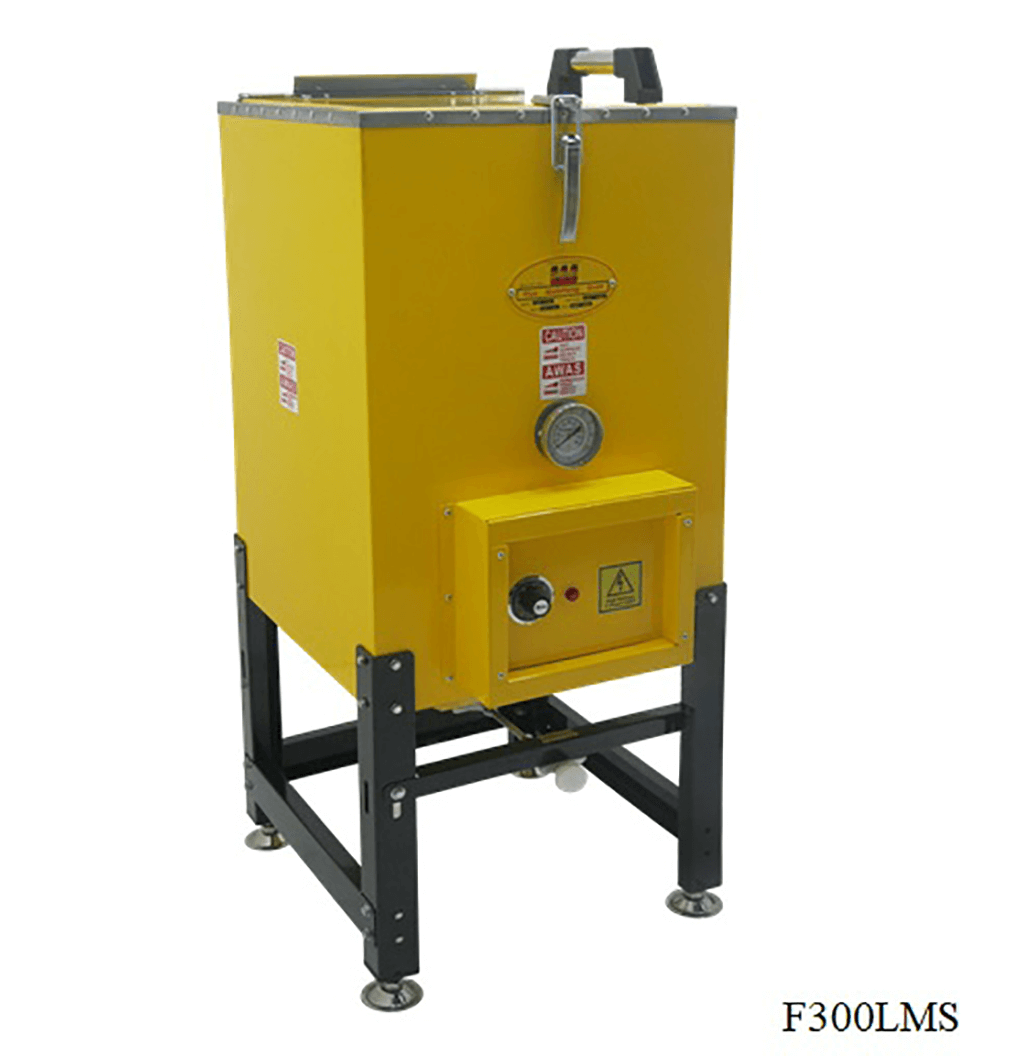

  • F300LMS/225kg

Storage temperature: 150ºC

Re-drying temperature: 300ºC for 2-4 hours

EG Mild Steel casing with Epoxy

Specifications

Model F100LMS F200LMS F300LMS
Flux Capacity 100L (75 kgs) 200L (150 kgs) 300L (225 kgs)
Temperature
(Average
Stabilized)
Adjustable 50ºC – 300ºC
Voltage 230VAC
Heating Element 3 4 4
Watts (total) 1500 2000 2500
Insulation 2” (50mm) Fiber Glass
Dimension 510 x 600 x 1230 mm 610 x 700 x 1390 mm 660 x 750 x 1500 mm

[wpforms id=”615″]



High quality & durable vertical flux oven to storage & handling recommendations for flux to make the requirement of all certifications of calibration.

Vertical flux oven is relatively inexpensive & quality fabricators & welding operators would ever think of leaving their ovens cold.  It is good insurance, like a flu shot.

Vertical flux oven is specially designed as a ship’s & offshores’ to re-drying & storage the flux.  It is very well insulated with high-temperature resistance rock wool insulation and variable setting from 50ºC to 300ºC to ensure a moisture-free atmosphere.

Features

  • Specially designed for drying storage of welding powders.
  • Ovens are thermostatically controlled with a temperature range from 50ºC to 300ºC.
  • Color – safety yellow color ensure high visibility.
  • Heating Element – UL Approval File Note UL1030 (E107991)
  • Drive off moisture and get good welds
  • Guard against rejects
  • Eliminate rework
