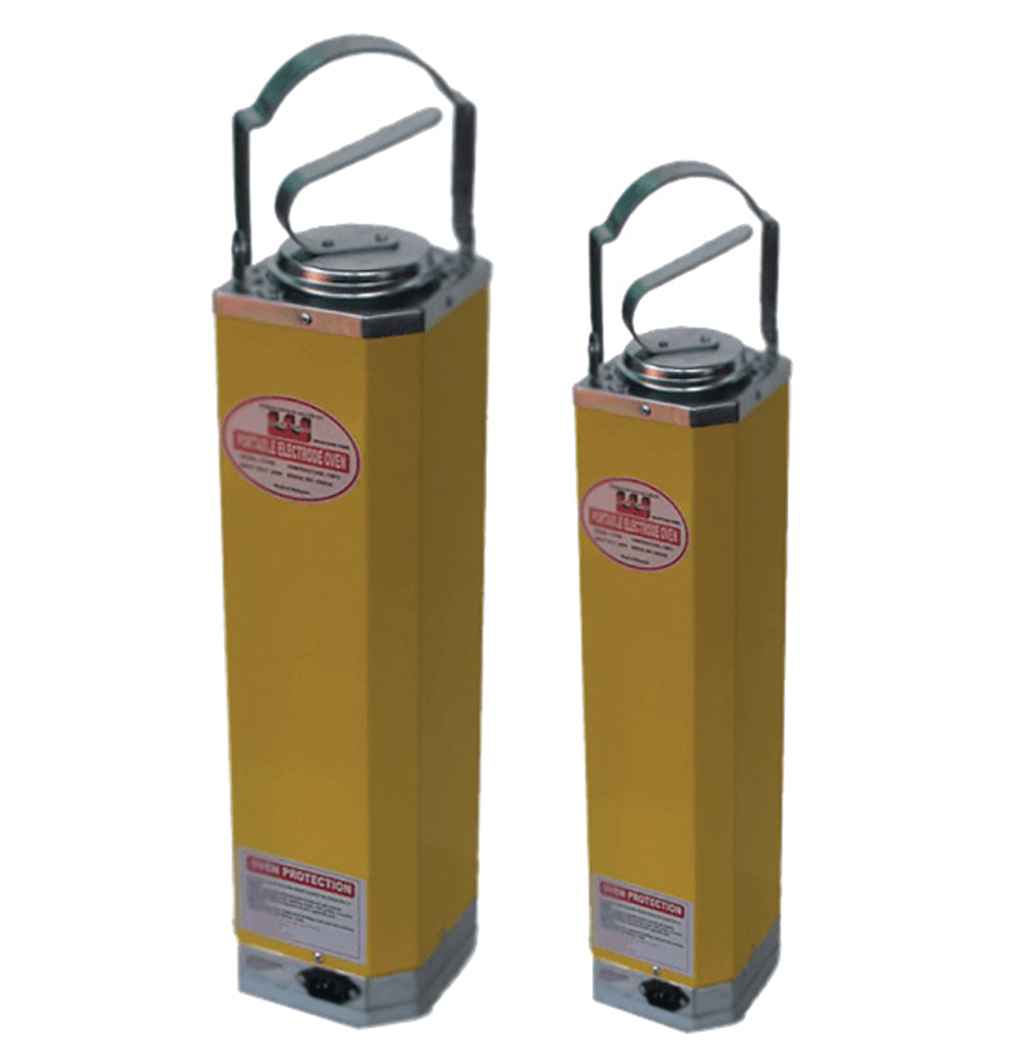

Square Type Portable Electrode Quiver with Mild Steel

TYPE 5/10 New Series
Input voltage – AC/DC 90V
– AC 240V
– 110V OPTIONAL
Capacity – 5/10 kgs
Electrodes – up to 18” (457mm)
0ºC to 150ºC variable control (OPTIONAL MODEL)

Specifications

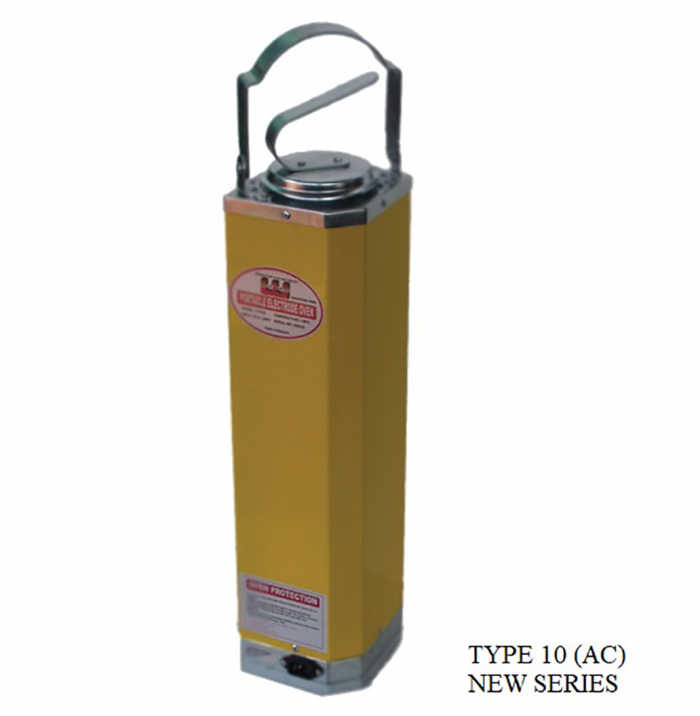

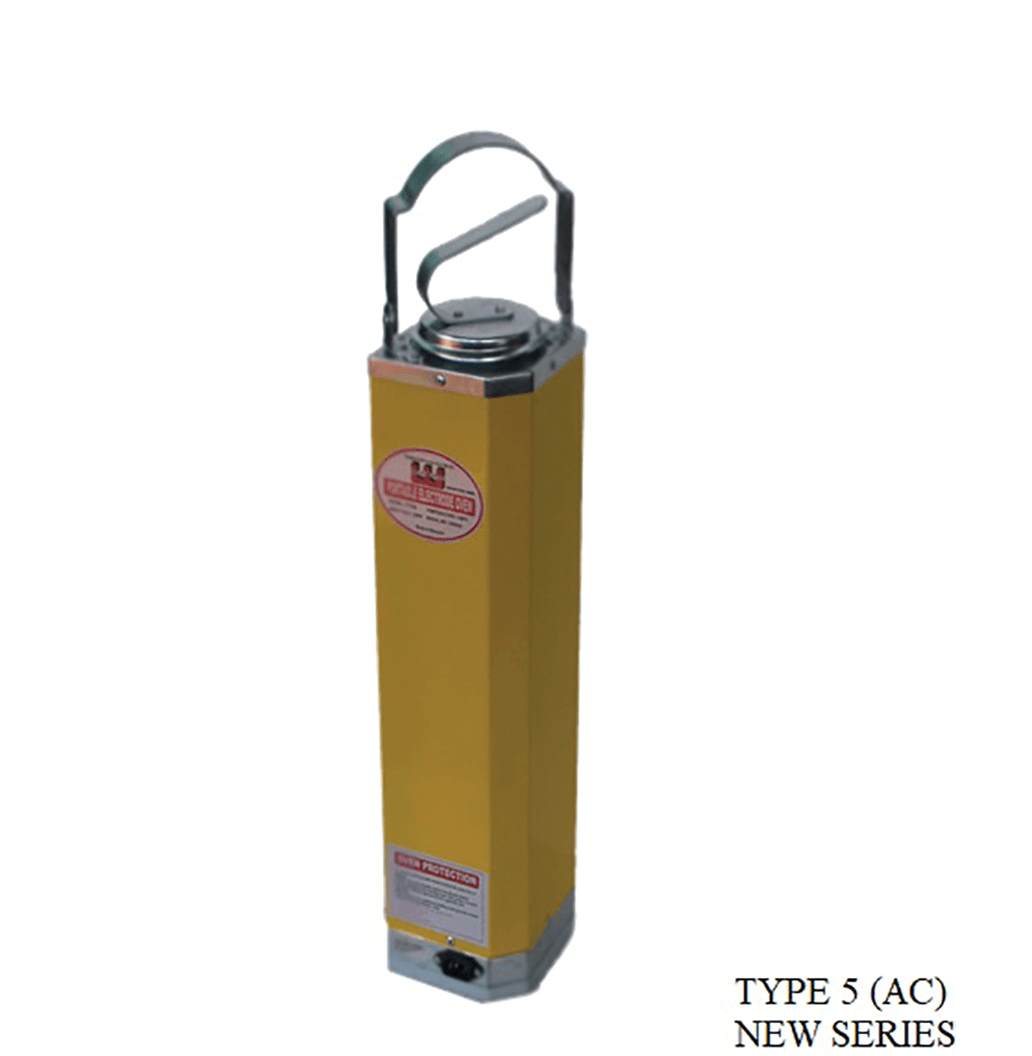

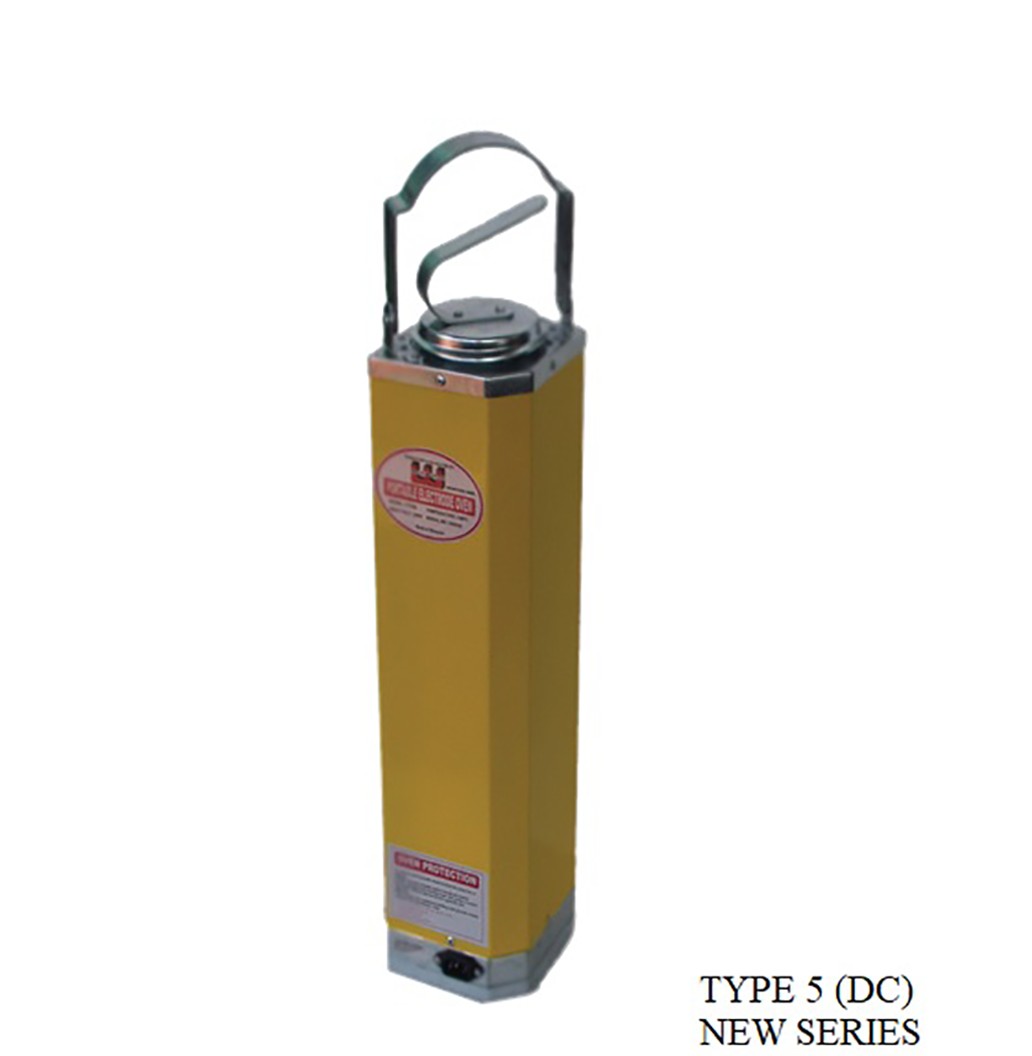

Model Type 5 (AC) NEW SERIES TYPE 10 (AC) NEW SERIES TYPE 5 (DC) NEW SERIES TYPE 10 (DC) NEW SERIES
Capacity 5 kg 10 kg 5 kg 10 kg
Temperature (180°C)
Voltage 240VAC 240VAC 90VDC 90VDC
Electrode Size 10”, 12”, 14”, 18”
(254, 305, 356, 457mm)
Heating Element 1pc
Insulation 1” Fiber Glass
Nett Weight  4.4 kg 5.3 kg 4.4 kg 5.3 kg

If you use low hydrogen electrodes or iron powder-coated or stainless steel, aluminium, inconel, monel, brass, bronze, hard surfacing and other special low alloys, oven protection is not only recommended but mandatory as
• All mineral-coated electrodes absorb moisture the minute they’re unpacked.
• Welding with moist electrode leads to internal and external porosity, underbead weld cracking; rough weld surface, excessive slag, fluidity, difficult slag removal and a generally poor appearance.
• Proper storage in low temperature holding ovens prevents moisture absorption and unsatisfactory welds.

Features

  • Electrodes can be easily loaded and unloaded.
  • Small and compact complete with handle – easy to carry around.
  • Portable type – convenient and easy for the shop or field keeping electrodes warm and dry, within reach of the welder.
  • Even, continuous heat for 100% protection from unpacking to use.
  • The heating element heats the entire length of the rod chamber – providing faster and more uniform heat distribution ( with UL approval)
  • Safety yellow color ensure high visibility.
